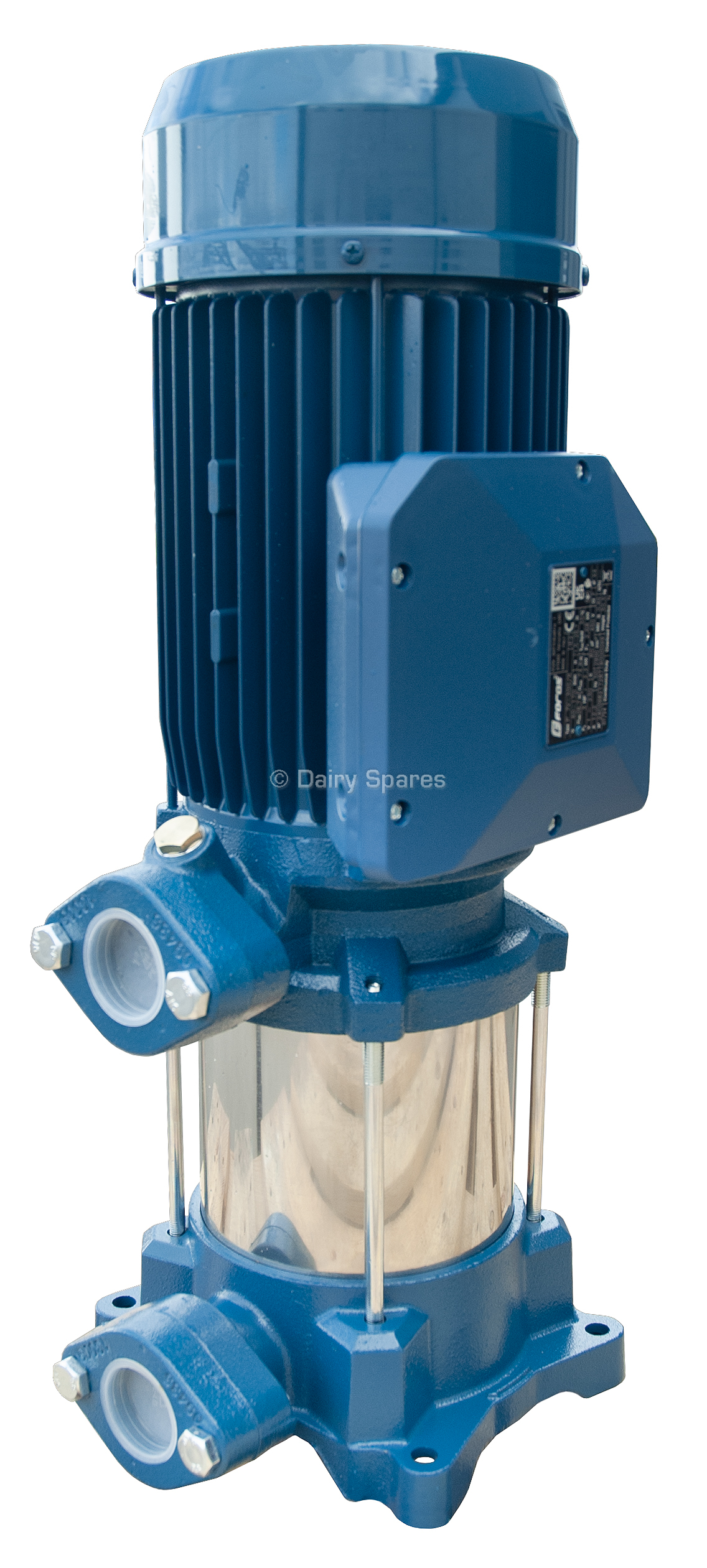

Volume Wash Multistage Pump 6 Stage Max 140 l/min@48mH 230V 1ph 2.2kW (3HP) c/w Noryl® Impeller - VWA06A

Volume Wash Multistage Pump 6 Stage Max 140 l/min@48mH 230V 1ph 2.2kW (3HP) c/w Noryl® Impeller – VWA06A

You are here: Home > Products > Water Handling > VOLUME WASHERS > VOLUME WASHER MULTISTAGE PUMPS > Volume Wash Multistage Pump 6 Stage Max 140 l/min@48mH 230V 1ph 2.2kW (3HP) c/w Noryl® Impeller – VWA06A

Part No.	Description.	Size/Suitable For.	MOQ
VWA06A	Volume Wash Multistage Pump 6 Stage Max 140 l/min@48mH 230V 1ph 2.2kW (3HP) c/w Noryl® Impeller	1¼" In/Out	1	1	Enquire

Additional Information

Technical Specification

Height: 552mm
Motor size: 2.2kW
Voltage: 230V 50Hz
IE: IE2
Ampage: 11.5A
Capacitor: 80 microFarad 450V
Impellors: 6 x Noryl
Capacity: 40-140ltr/min
H(m): 75.1-48.2
Port Size: 1.25″ In, 1.25″ Out
Pump position: Vertical

It is recommended to use the following Flow Controllers with this unit:

VW067 need 1¼”-1″ F/M reducer
